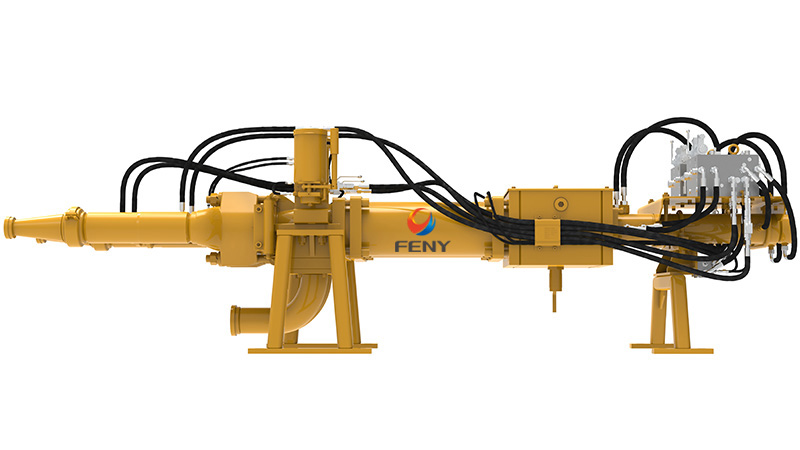

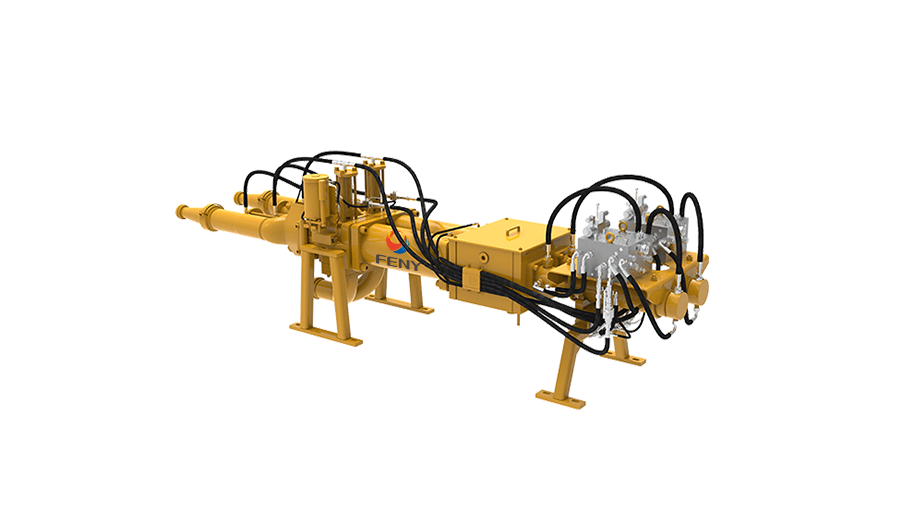

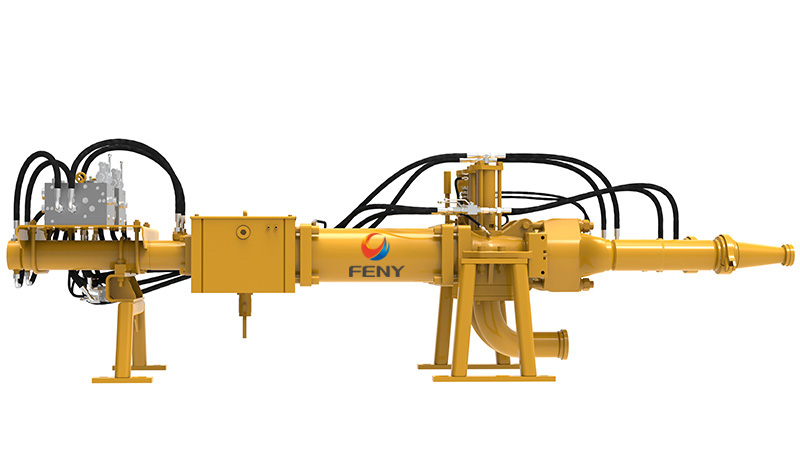

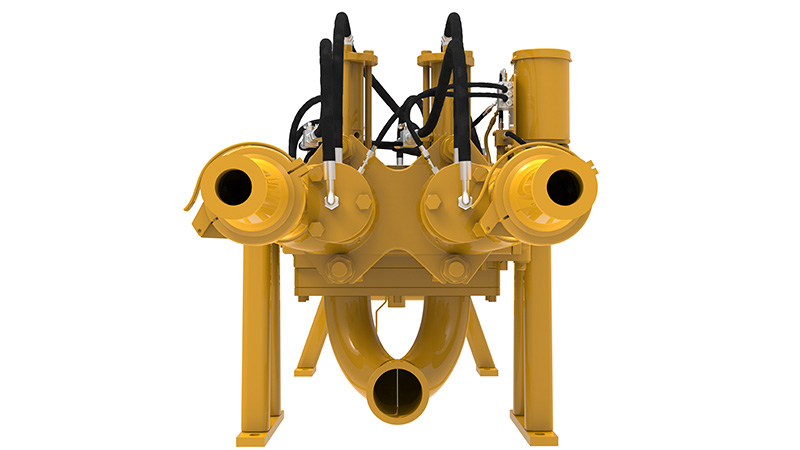

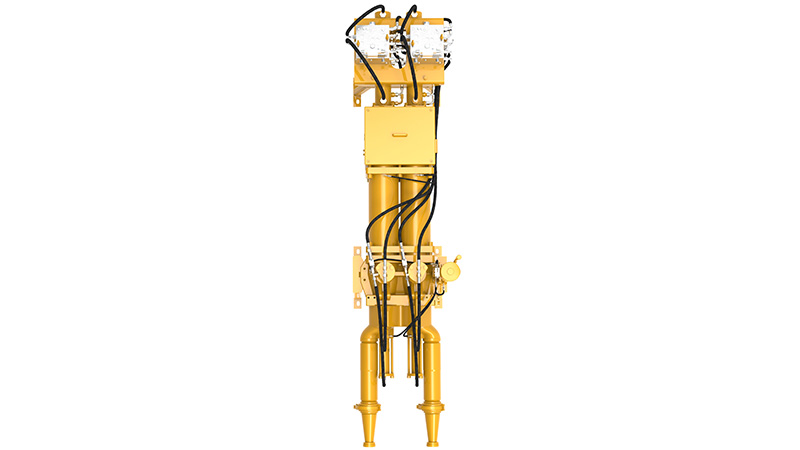

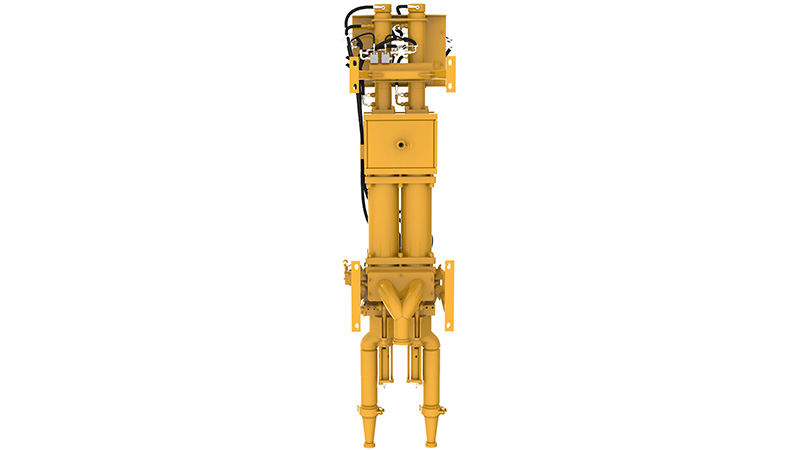

Injection pump
This product is the main product of the injection system and is intended for use in tunnels and mines, delivering materials through pipelines to the injection site. Applied for pumping fine-grained and viscous materials such as various concentrations of tail solutions, municipal precipitation, coal sludge and other materials through pipeline pumps. The viscosity of the solution is required to be at least 15 cm, the maximum size of a large filler is 5 mm, the solid particle content is from 50% to 85%, and the pH is from 6 to 9.5. Applicable to fine-grained materials such as tail solutions, dust masses, red mud, precipitation, coal sludge, etc. d.
Ease of Service High universality
Consultation
Product advantages
Technical parameters
Hydraulic system uses open hydraulic system with fluid control and direction switching;
● High reliability
Two groups of execution blocks are completely identical, replace each other, can work simultaneously or independently, providing high reliability and versatility. Easy maintenance The solenoid valve is equipped with a unique manual emergency device, allowing you to quickly solve the problem in the first moments;
● Stable operation Hydraulic power and control elements are the products of famous world brands such as SUN, EATON VICKERS; imported hydraulic hoses, connectors and sealing elements are used.
● High degree of integration of the entire system

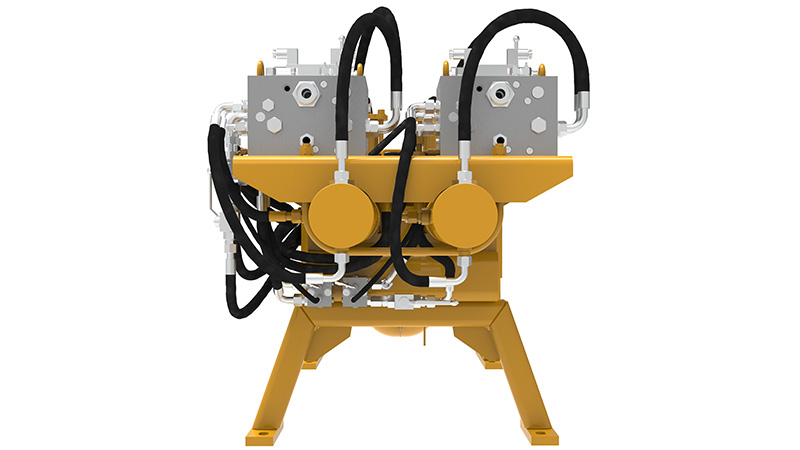

An integrated hydraulic group of valves is used.
| Item | Unit | Parameter Value |
| Rated Outlet Pressure | MPa | 6.25 |
| Main Cylinder Bore/Drod Dia. - Stroke | mm | φ100/63-550 |
| Delivery Cylinder Diameter | mm | DN200 |
| Distribution Valve Type | - | Cone Distribution Valve (Lift Valve) |
| Max. Pumping Frequency | Times/min | 5.1 |
| Overall Dimensions (L×W×H) mm | mm | 3147×764×917 |
| Outlet Port Diameter | mm | DN50 |
| Outlet Port Diameter | mm | DN100 |
| Permissible Slump Range | cm | ≥15 |
| Max. Aggregate Size(mm) | mm | 6 |
