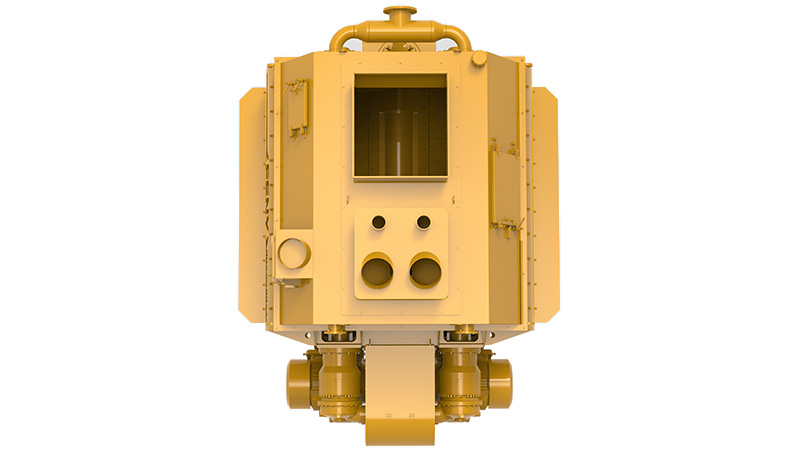

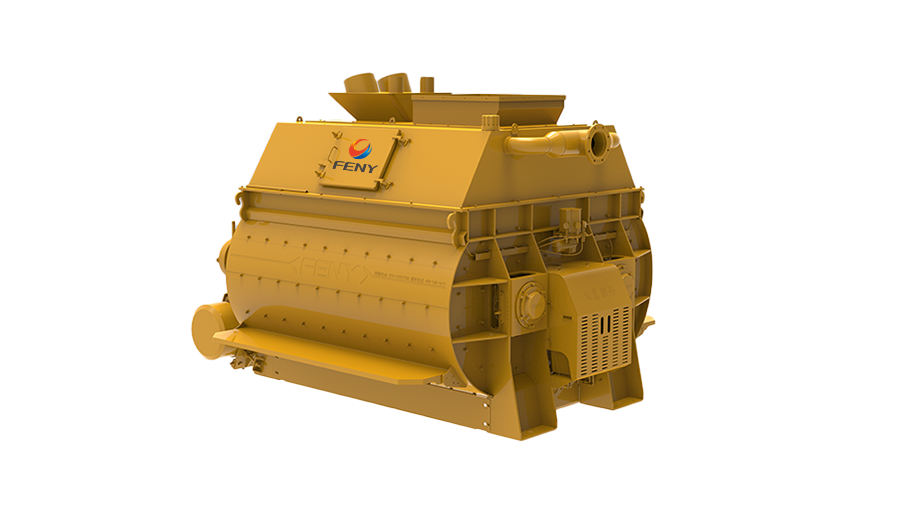

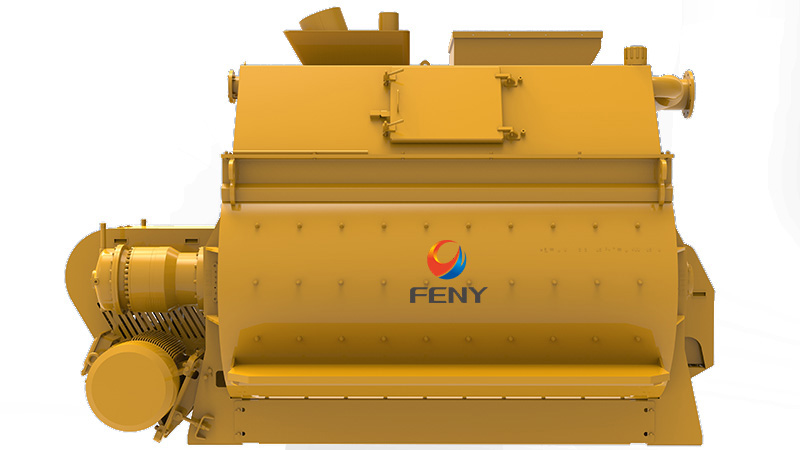

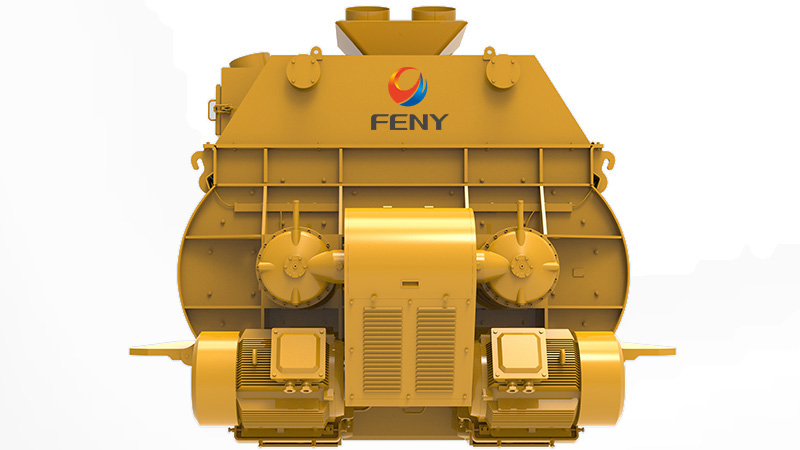

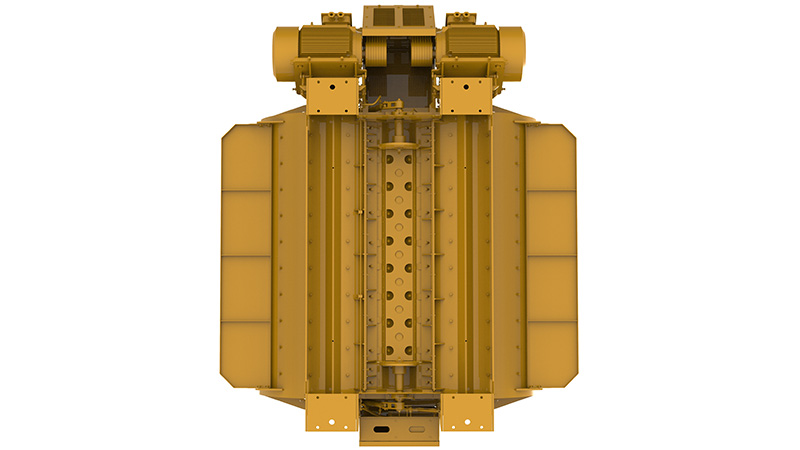

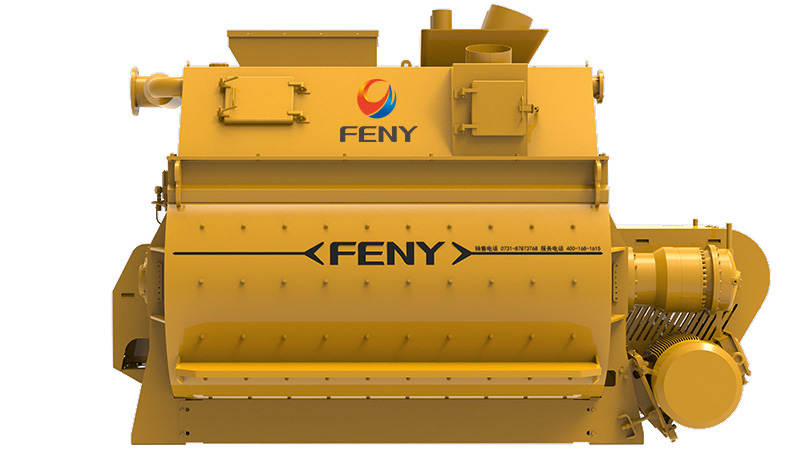

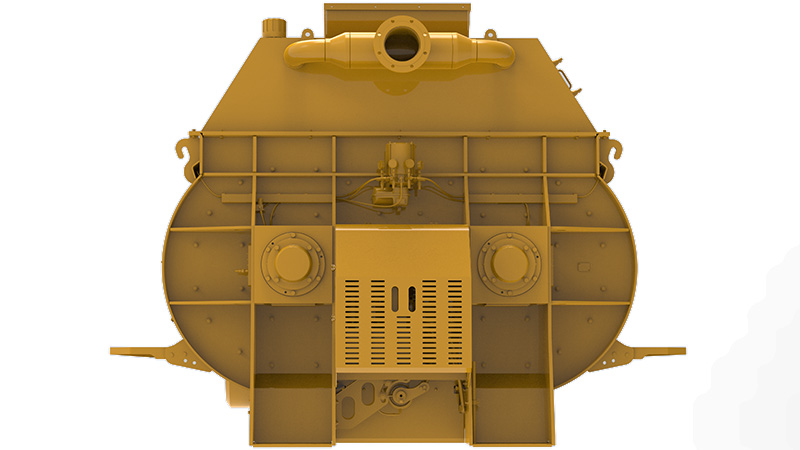

Two-axis periodic mixer
One of the key components of the paste mixing system is two-axis periodic mixing, which has advantages such as controlled mixing time and even mixing. The blades of the mixer are pressed in the form of crossing teeth, which ensures complete, fast and even mixing of the mixture, greatly improving the efficiency of the process. This creates a reliable basis for paste filling and is mainly used in conditions where a large filler is used as a filler.
Mixing time is adjustable Careful mixing
Consultation

Product advantages

Technical parameters

● Careful mixing

The dimensions and location of the rotating sleeves and blades are made according to a special design, providing excellent mixing effect.


● Quality grease intake

Equipped with fully automatic centralized lubrication system DC24V, with several independent oil supply pumps, high operating pressure and the possibility of self-programming operation time.


● High reliability


● High Transmission Efficiency


● High sealability

The shaft end seal is equipped with floating oil seal ring, special sealing elements and pressure-fed lubricant, forming a multi-layer labyrinth sealing structure. The seal is characterized by reliability, high stability and long service life.


● Maintenance convenience

Installation of repairable pedal or platform, removable inspection and observation doors with quick-opening locks provide good sealing, convenient quick opening and closing, as well as ease of maintenance.



ModelNominal VolumeLMotor PowerkWOverall DimensionsmmMax. Aggregate SizemmWeight kg
TBM200020002×372590×2470×2040647500
TBM300030002×553410×2470×2080
10200
TBM400040002×753500×2855×2320
14000
TBM500050002×904260×3180×2760
22000
TBM600060002×1104790×3180×2800
24000
