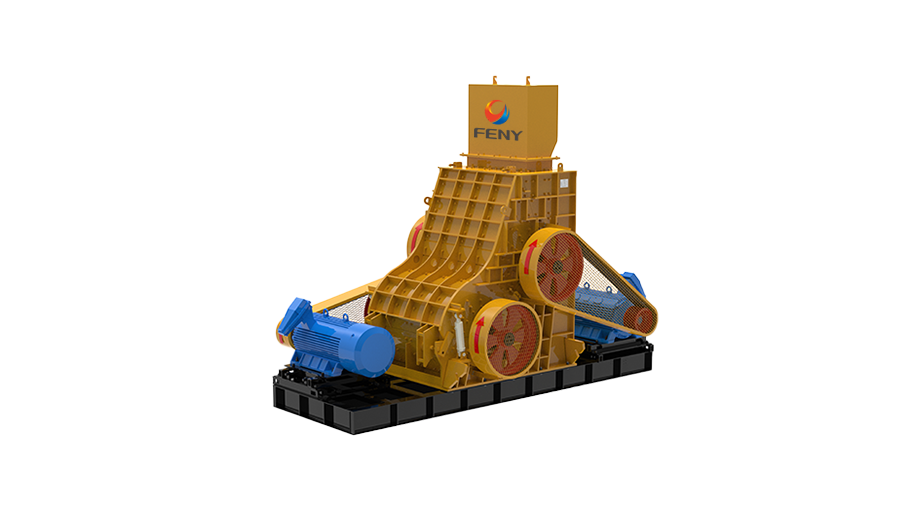

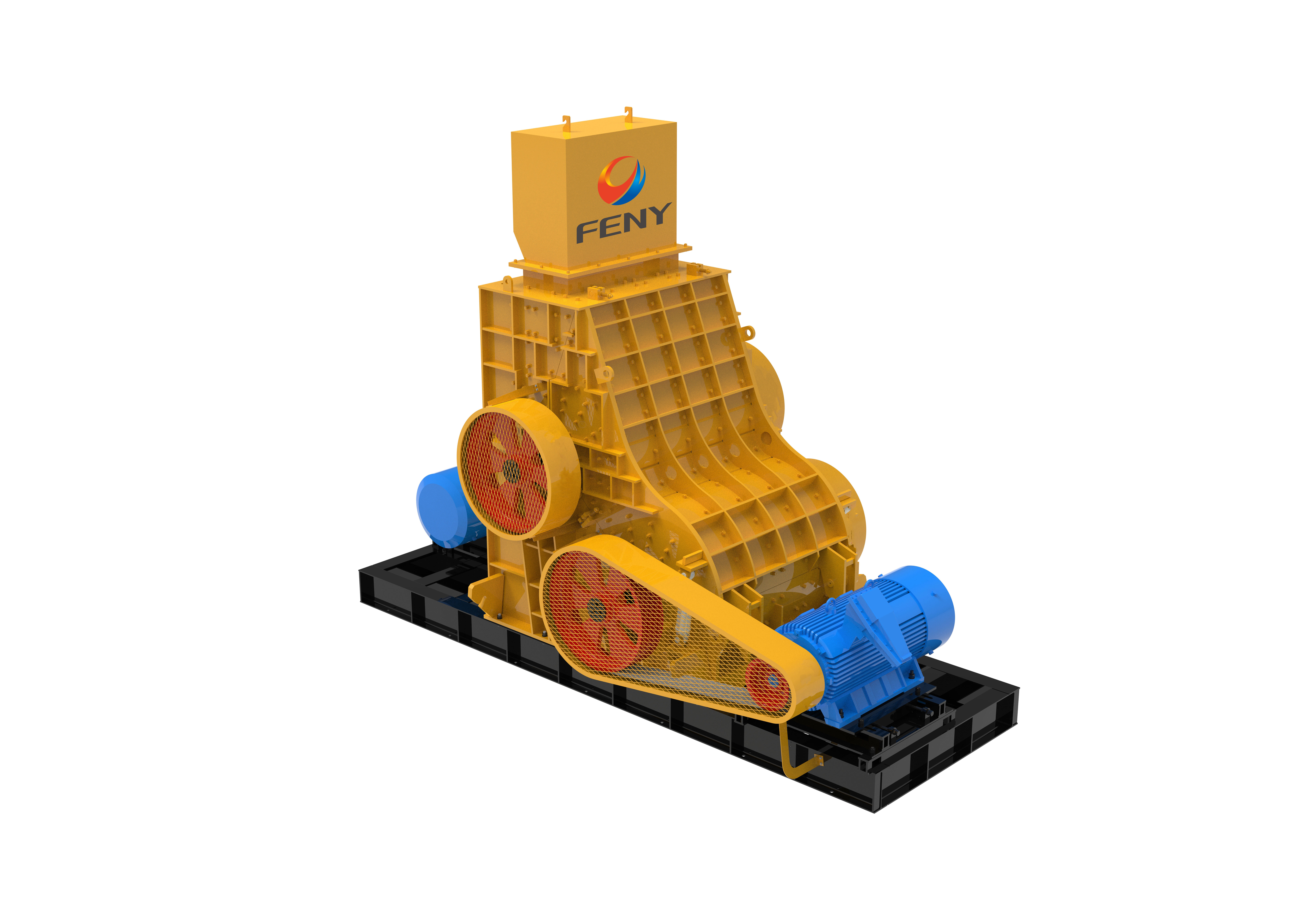

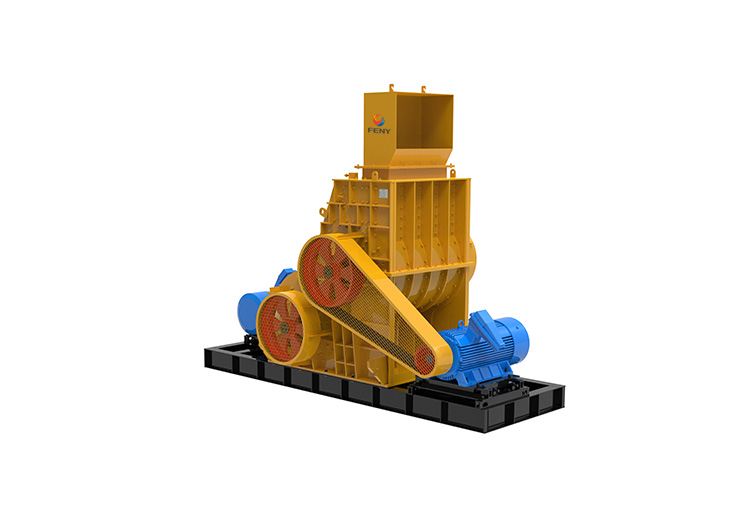

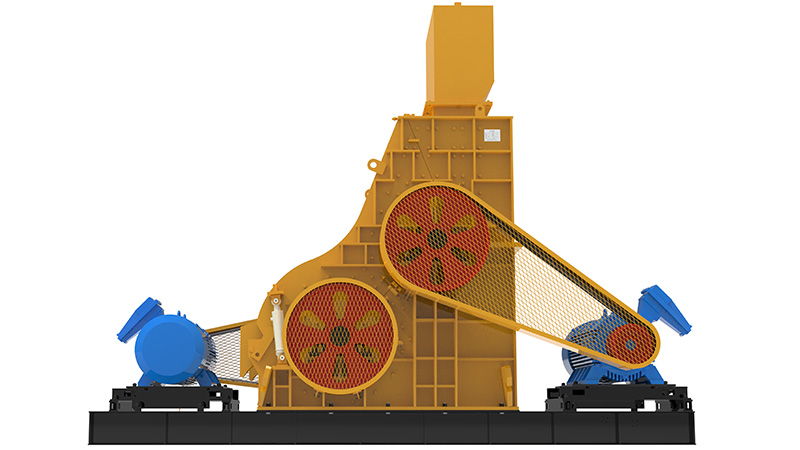

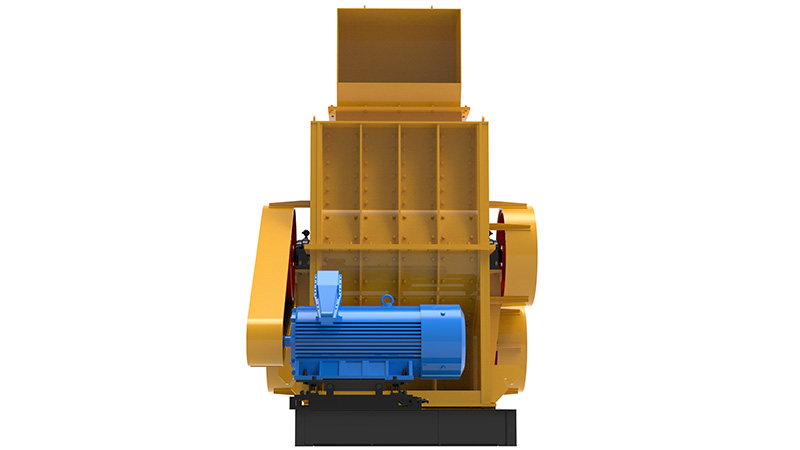

Two-stage hammer crusher
This product is the key equipment for the crushing system, mainly designed for crushing coal sludge, to ensure the particle size distribution of the resulting crushed sludge according to the requirements of paste filling. In the chamber of the machine are installed two systems that perform the work using two rotors of the upper and lower levels.
No material clogging Wear-resistant hammers and lining plates
Consultation
Product advantages
Technical parameters
● Good adaptability
No press cord, no clogging at the output due to the adhesion of the material, can work at the maximum moisture content of up to 15%.
● High crushing ratio and high productivity
● Wear-resistant, shockproof, energy-saving and environmentally friendly
Wear-resistant parts materials such as hammer, lining and rotor are made of various high-strength alloys, ensuring long service life. The energy-saving screw wheel design ensures smooth operation, high inertia, small shock loads and energy savings.
● Stable operation, good crushing effect High crushing ratio and optimal granulometric composition of the product.
● Good repairability
Hydraulic valve with convenient and quick replacement of parts.
| Model | Moisture Content of Feeding Material % | Feeding Sizemm | Discharge Sizemm | Production Capacityt/h | Reference Motor PowerkW |
| 2PC1012 | ≤15 | ≤130 | ≤10 | 60 | 2×132 |
| 2PC1214 | ≤130 | ≤10 | 100 | 2×185 | |
| 2PC1416 | ≤150 | ≤10 | 150 | 2×250 | |
| 2PC1620 | ≤200 | ≤10 | 200 | 2×400 |
